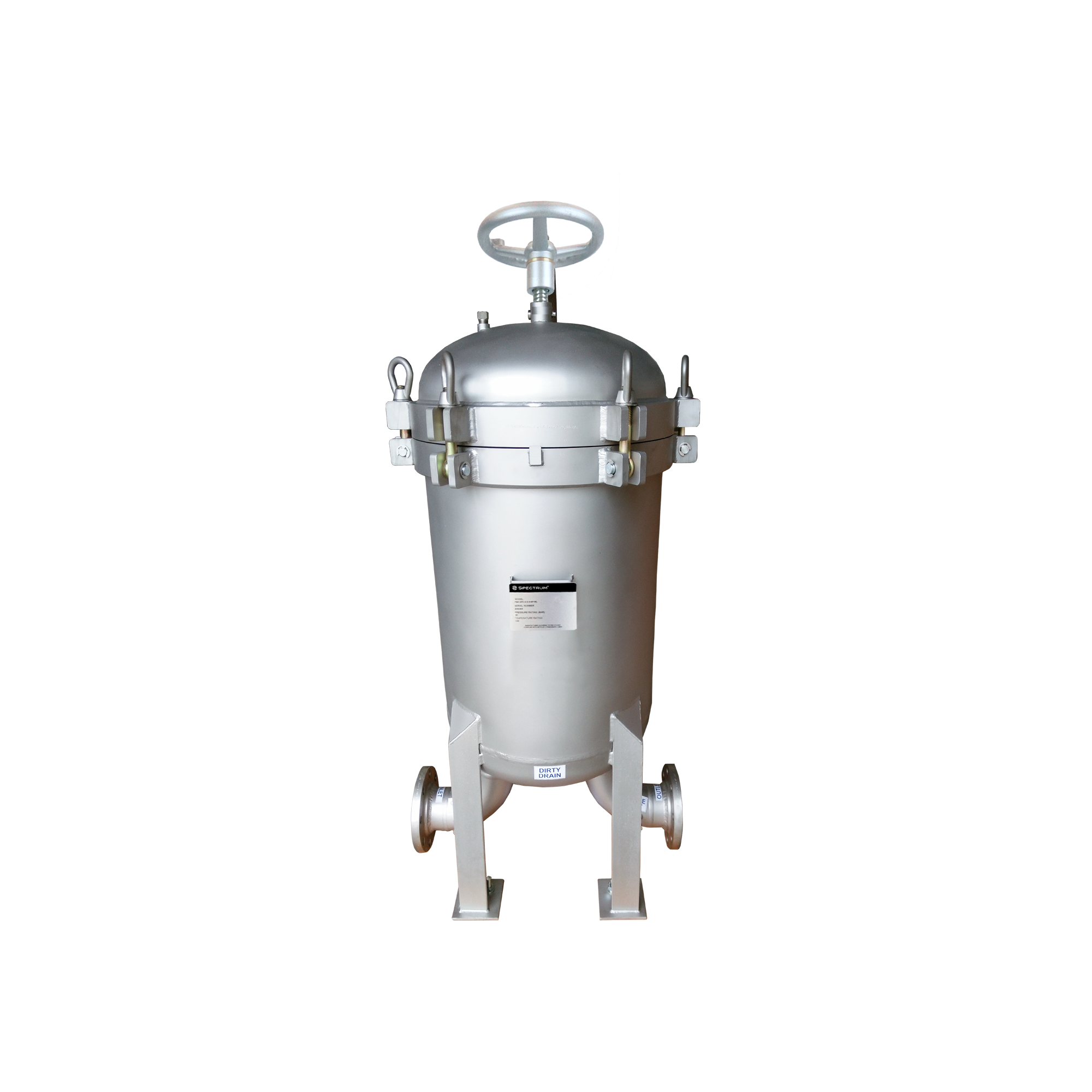

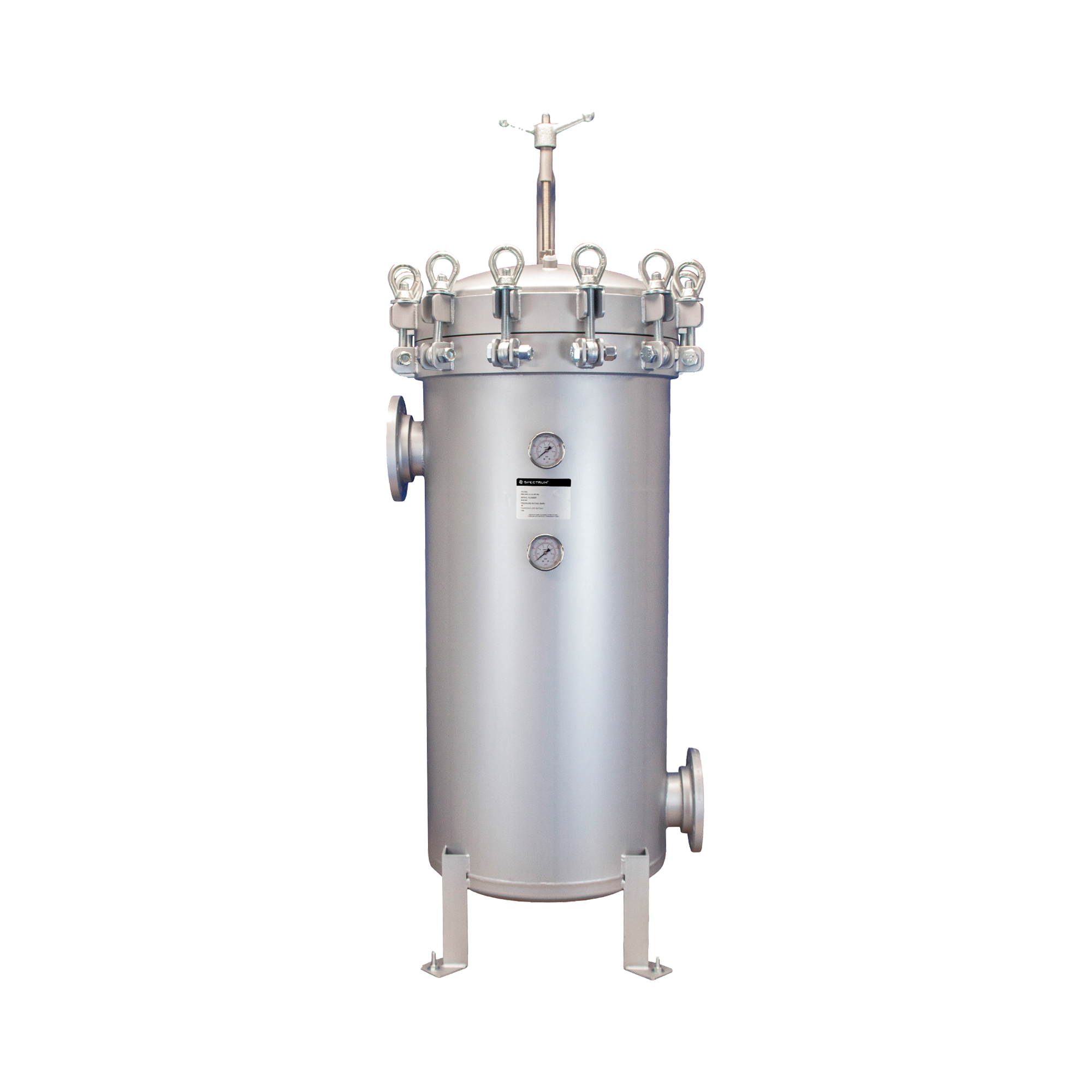

SPECTRUM Inox Multi-Round Stainless Steel Bag Housings

Heavy‑duty stainless steel housings engineered for large‑volume bag filtration in demanding industrial environments.

Pbh Multiround

Overview

Rugged 316L stainless steel construction, swing-bolt closure with lifting davit, and high flow capability. Rated to 10 bar and 120 °C, they’re ideal for demanding industrial processes requiring reliable, large-volume filtration.

Key Product Features

  • 316L stainless steel construction for corrosion resistance and durability
  • 10 bar pressure and 120 °C temperature rating for demanding applications
  • Heavy duty swing‑bolt closure with davit lifting assembly for safe, easy access
  • Standard Buna‑N head seal for reliable leak‑free performance
  • Inlet/outlet flanged connections (3" – 8") for flexible system integration
  • ¼" gauge ports and included gauges for convenient monitoring
  • ¾" drain port for fast, clean drainage
  • Stainless steel support legs and basket hold‑down device for stability and safety
  • Protective polycoat finish for added longevity in harsh environments
PURCHASE OPTIONSDOWNLOAD DATASHEET
