Product Overview

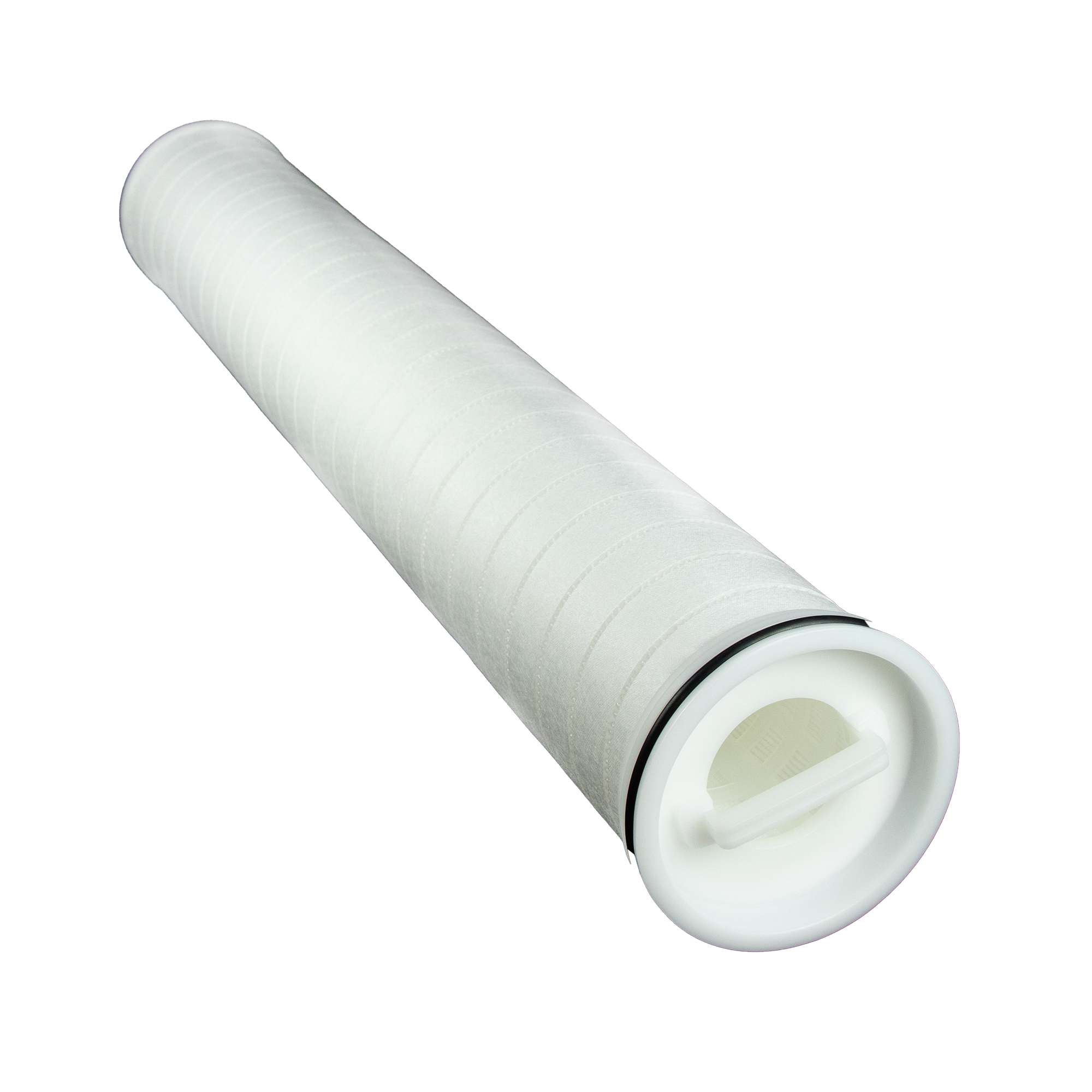

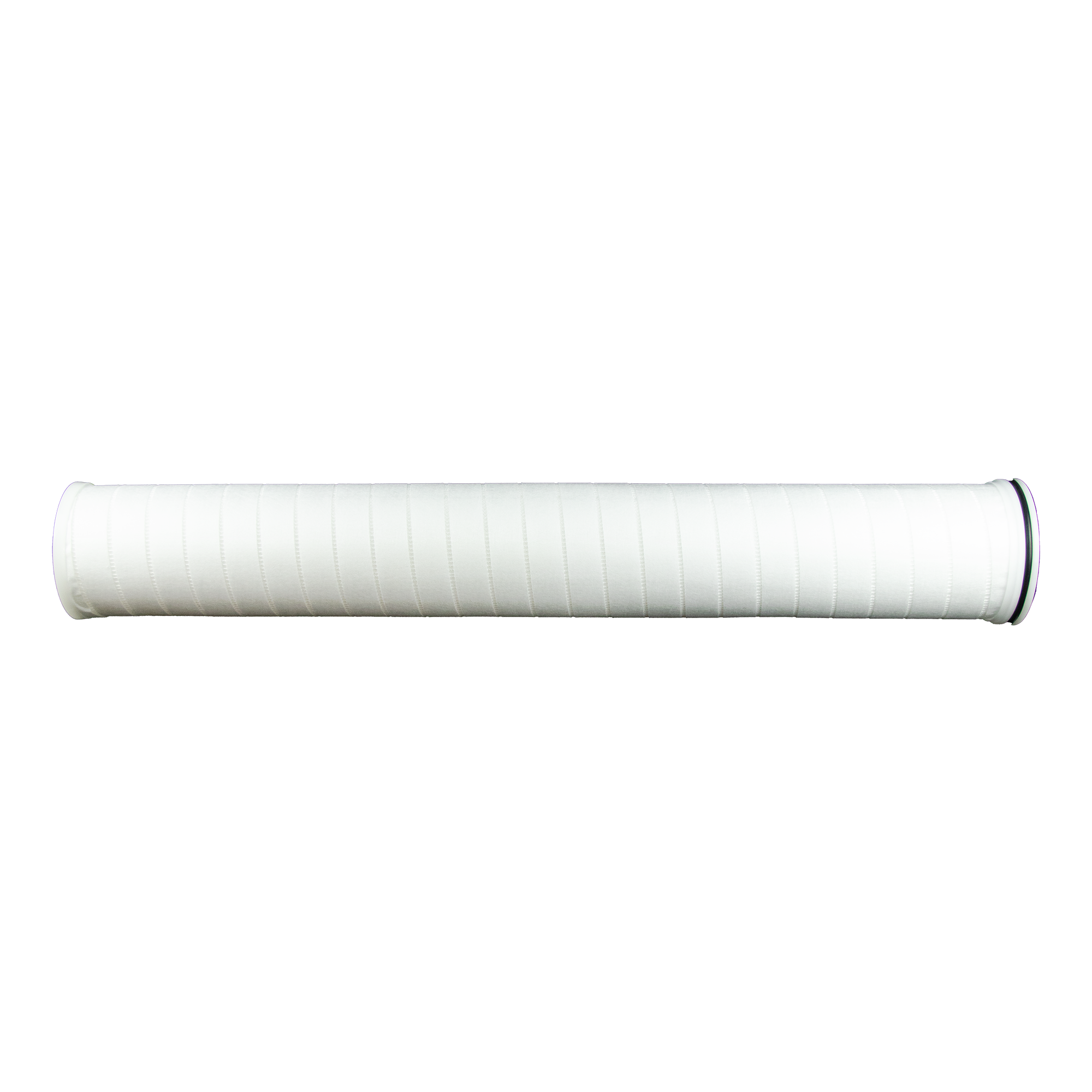

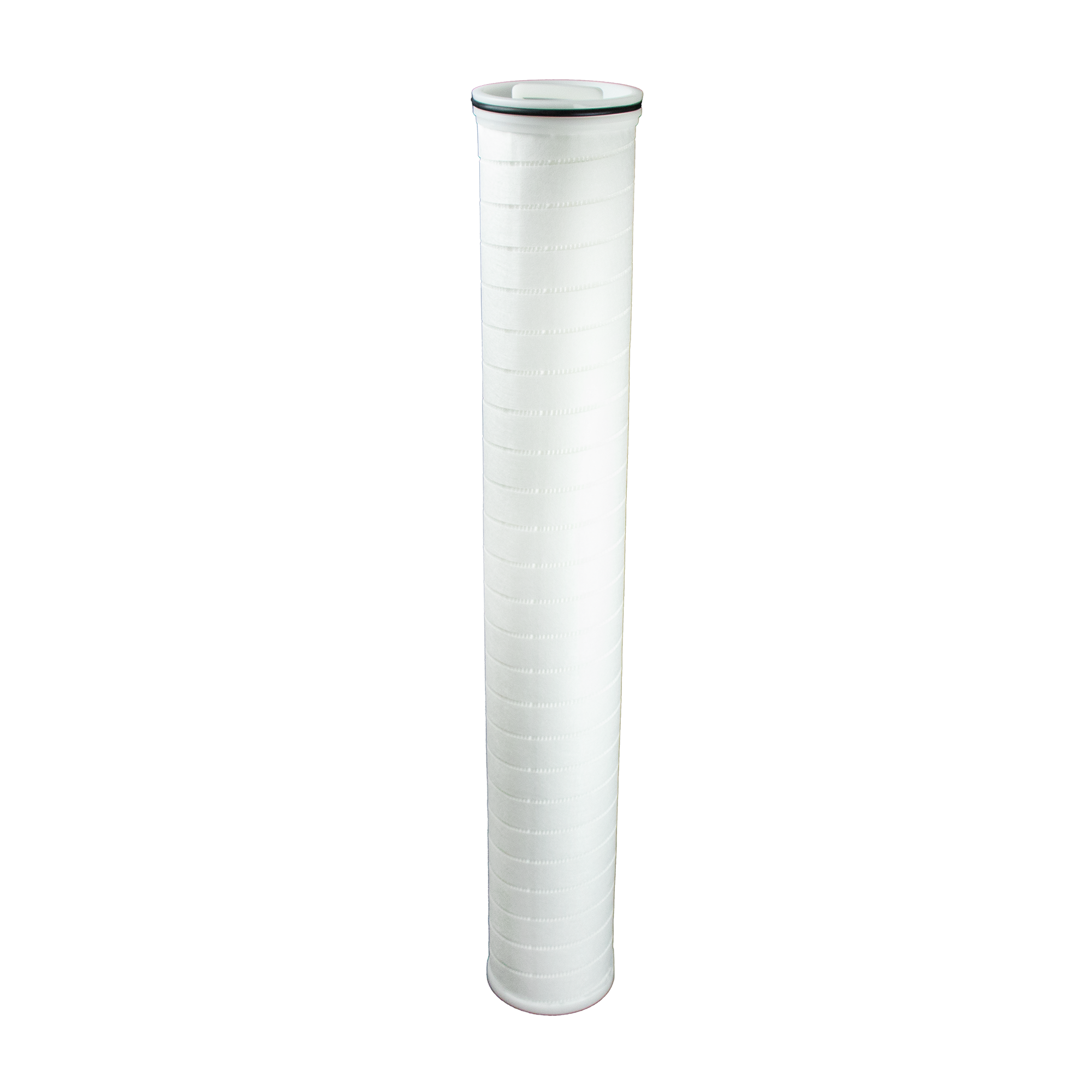

SPECTRUM High Flow cartridges bring together the high dirt holding and flow rate advantages of a bag filter with the large surface area of a pleated cartridge – providing outstanding flow rates of up to 110m3/hr.

The perfect solution for industries from local water authorities to soft drinks or applications that require high volumes of fluid to be filtered with high efficiency at low pressure drop. Each cartridge is manufactured from FDA compliant materials to ensure suitability for food contact, ideal for municipal and food and beverage applications.

A multi-layered, graded pore density provides greater dirt-holding capacity resulting in increased cartridge life. High Flow cartridges require significantly less maintenance than other cartridge solutions. A single High Flow with its large 6″ diameter can replace multiple smaller cartridges with 63 x 10″ pleated cartridges amounting to the flow of a single 60″ High Flow.

The polypropylene High Flow cartridge is 99.2% efficient and offers excellent chemical compatibility and exceptionally high flow rates at up to 82°C. The Glass fibre option provides even greater efficiency over the polypropylene at 99.98% (absolute) without significant impact on flow rate whilst offering even lower pressure drop and capability of operating temperatures up to 121°C.

High Flow cartridges feature a large O-ring seal which provides a secure connection and prevents bypass with an inside to out flow pattern that prevents potential contamination on cartridge changeout. Cartridges also have a glass fibre reinforced end-cap with integral handle for easy and secure cartridge changeout.

Key Product Features

  • Manufactured from FDA compliant materials in Polypropylene (99.20%) and Glass Fibre (99.98%)
  • Multi layered graded pore density structure results in a media with excellent particulate removal capabilities
  • Inside to out flow pattern prevents any potential contamination on cartridge changeout
  • Available in a variety of absolute rated micron sizes
