Product Overview

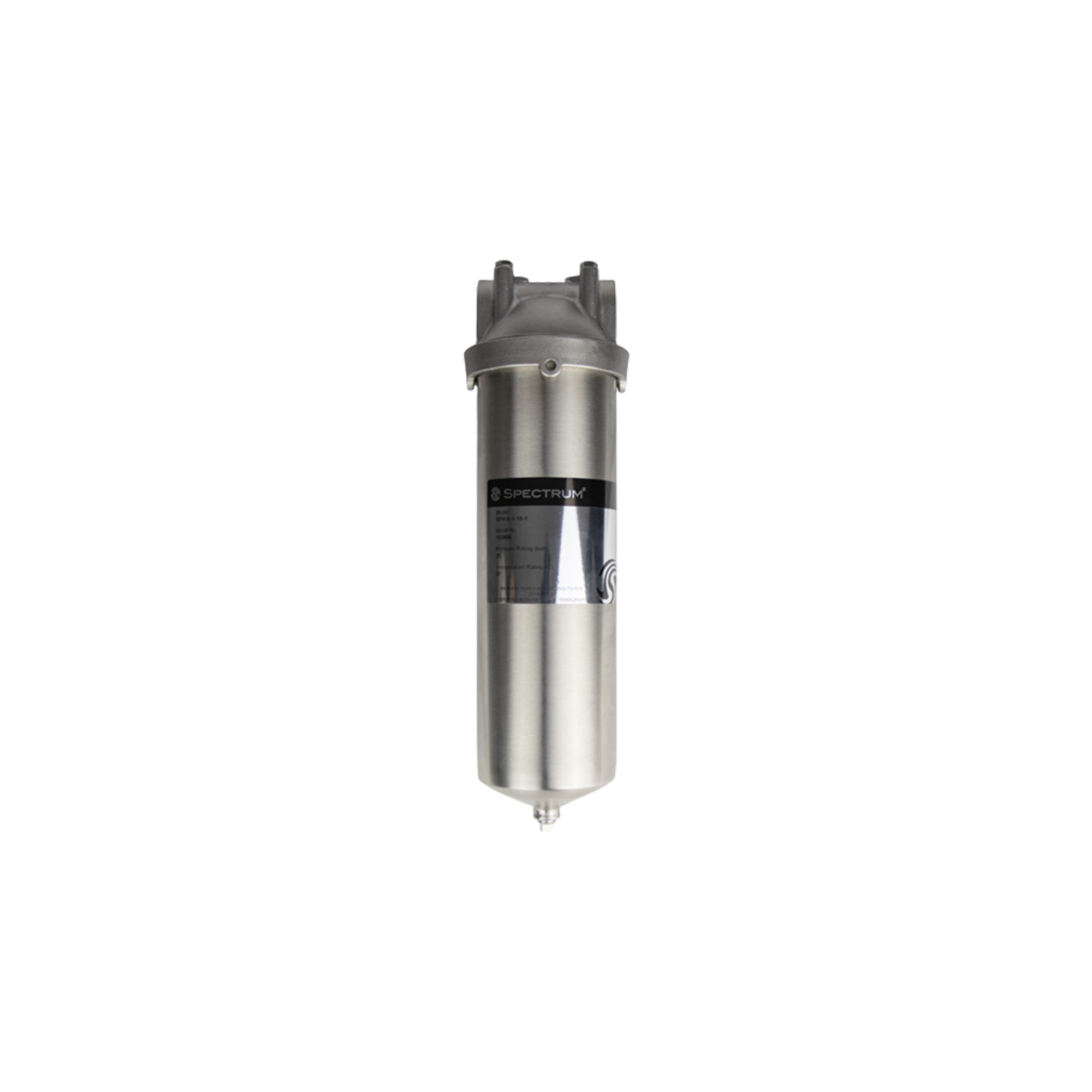

SPECTRUM Inox single round housings were specifically designed in a heavy duty construction to perform in the harshest of application environments with high temperatures, high pressures and challenging liquids. Offering solutions beyond plastic housings, these high grade 316L stainless steel housings suite applications from nominal particulate removal to critical absolute filtration when selecting the appropriate end-capped cartridges.

Allowing for both longitudinal and radial flow cartridges, the SFH housing is manufactured with a spring-loaded seal plate accepting cartridge lengths from 93/4″ to 30″ and a head which accommodates a 213 O-ring seal along with the regular DOE/AA end-caps for wider application capability.

Key Product Features

  • Compatible with both radial and longitudinal flow cartridges
  • ¼" drain allows for easy drainage with minimal ground clearance required for cartridge changeout
  • Comes with mounting bosses, bracket kit and locking ring closure tool to facilitate quick and simple installation
